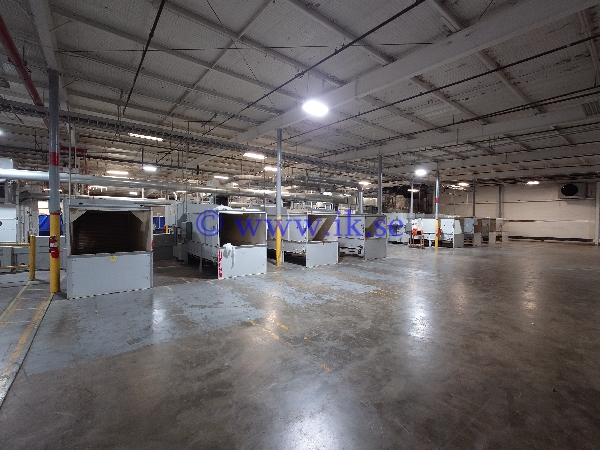

airthrough bonding line thermobond line
Complete production line for airthrough bonded products, such as ADL and filtration, consisting of:
2 opening and blending lines, yoc: 1985 - 1995, each consisting of:
04 Hergeth Hollingsworth bale openers with electronic weigh scales, ww: 1500 mm
01 Hergeth SBL-1000 mini mixers
Feeding into:
05 Trützschler MWS weigh hopper feeders
05 Trützschler RSK and SFO fine openers and cleaners including fans, metal traps and LVSA condensors
05 Trützschler FS-5 reserve filling boxes incl LVSA condensors
05 Hollingsworth Tandem Mastercards, yoc: 1985 - 1995, ww: 3000 mm with Hergeth MC or Trützchler FBK-535 chutefeeds.
01 Technoplants Multiline ADL 32 dryer, yoc: 2018, with 4 x Maxon Valupak burners and 4 hot air fans to recirculate hot air for temperature control. Max temp 220 deg. C, Controlled by touch screen HMI, Siemens electronics and PLC, web width: 3000 mm.
01 A. Celli Stream pope winder, yoc: 2018, ww: 3000 mm (web width), max roll dia 2500 mm, , 30-300 N/m web tension, max production speed 150 m/min, 4 winding shafts suitable for 6 inch cardboard cores. With shear tangential "Slitto" system if cutting trim to wind master rolls is needed.
01 ISRA scanning gauge, yoc: 2018, ww: 3000 mm (web width)
01 A. Celli Tandem slitter/rewinder, yoc: 2018, ww: 3000 mm (web width) max production speed 500 m/min, web tension 30-300 N/m, max roll dia for unwind 2500 mm, shear tangential "Cotta" slitting system with 35 knives, minimum slitting width 60 mm. Rewind of finished roll - max dia 1250 mm. Siemens electronics for touch screen, logic and motor control.
SKU | 692-0029 |
---|---|
Manufacturer | |
Model | airthrough bonding line |
Year | 1985 - 2018 |
Electricity | 480/3/60 |
Width | 3000 mm |
Quantity | 1 |
