Conventional Nonwoven Cards
-
Hergeth Hollingsworth - conventional nonwoven card
SKU 611-0051 Width 3500 mm YOC 1987 Electricity 380/3/50 complete carding installation consisting of: 01 Hergeth Hollingsworth MC/W 6.130 chutefeed, ww: 3500 mm 01 Hergeth Hollingsworth type H card, ww: 3500 mm, Sg-2-H4-F2-d2-R2 model, breast with 2 workers/strippers, main swift with 4 workers/strippers, exit in double doffer with randomizing cylinders. Capacity: 515-700 kg/hr utilizing the full width and speed…
-

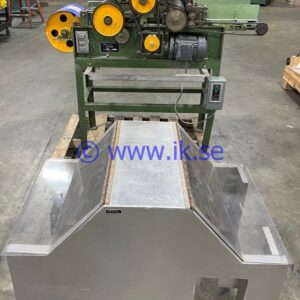

American Iwer - conventional nonwoven card
SKU 611-0054 Width 304 mm Lab card with safety enclosure. Feed table 254 mm (w) x 431 mm (l), (3) 44 mm feed rolls, 178 mm lickerin, 304 main, (3) sets of 86 mm workers and 50 mm strippers, fancy (no clothing), 203 mm doffer, comb take-off, 254 mm winding drum, 1-1/2 hp 220/440v motor,…
-

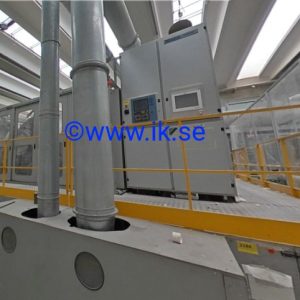

F.O.R. - conventional nonwoven card
SKU 611-0060 Width 3600 mm YOC 2003 Electricity 380/3/50 double/triple doffer roller card, designed for nonwoven production lines, suitable for processing PA, PES, PP and Viscose fibers at maximum speed of 150 m/min. Very suitable solution for high-uniformity webformation in technical and industrial nonwoven applications. Composed as follows: - Trützschler MSL 1600 feed trunk - Trützschler FBK chute feed,…
-

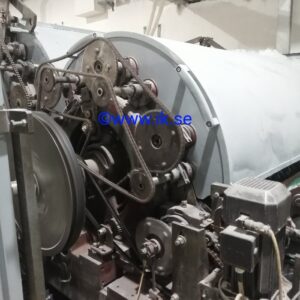

Tecnotex - conventional nonwoven card
SKU 611-0062 Width 2500 mm YOC 1996 Electricity 380/3/50 1st cylinder with 3 workers/strippers, 2nd cylinder with 3 workers/strippers, exit in double doffers. 50-60 m/min, was running PET for wadding.
-

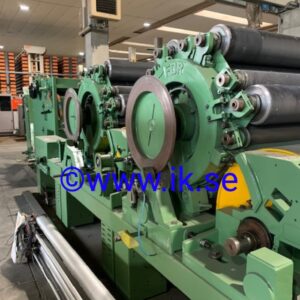

F.O.R. - conventional nonwoven card
SKU 611-0063 Width 2500 mm Electricity 380/3/50 breast - dia 858 mm with 3 workers/strippers - dia 210/120 mm transfer cylinder - dia 858 mm main swift - dia 858 mm with 4 workers/strippers - dia 210/120 mm single doffer exit - dia 858 mm with 2 x randomizing rollers - dia 260 mm
-

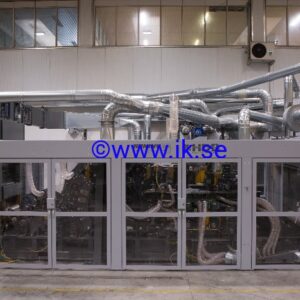

Bonino - conventional nonwoven card
SKU 611-0064 Width 1000 mm YOC 2025 Electricity 380/3/50 consisting of: BCM chutefeed for feeding material to the card - mat forming by means of air with high homogenity and regularity to the web, internal feeding cylinder and opening cylinder separating the material chambers. Including motors. Serel SLDC - density measurement system adjusting the material intake at the card…
-

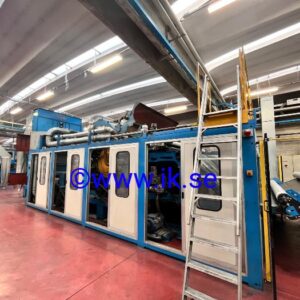

Bematic - conventional nonwoven card
SKU 611-0065 Width 3000 mm YOC 2002 Electricity 380/3/50 The robust design and the double doffer output configuration ensures high productivity, excellent fiber opening and reliable long-term operation.
