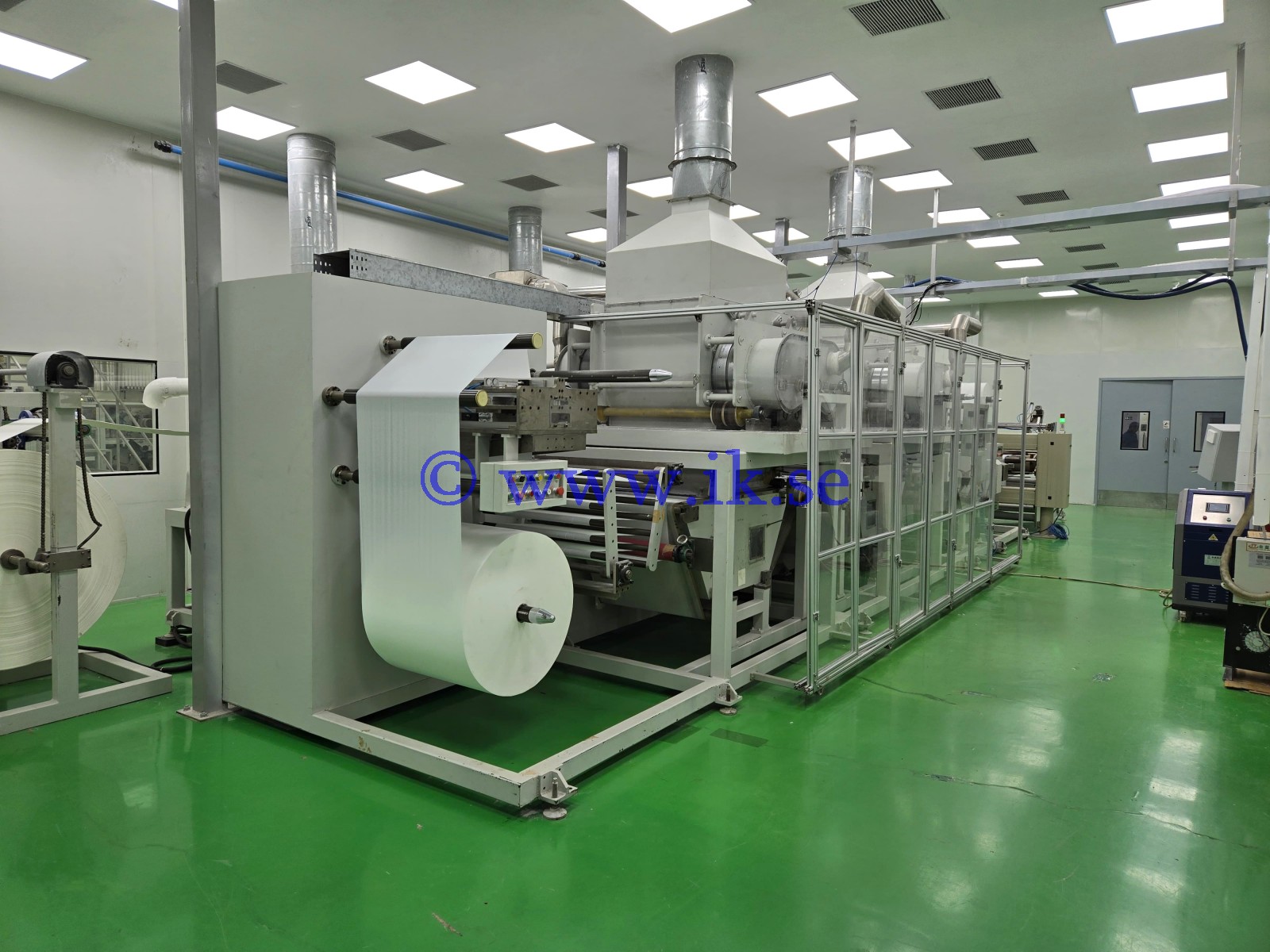

GHC Group short-fiber airlaid line

For the production of hydrogen bonded airlaid, perfect to make pre-made cores (for absorbent products) for example underpads, food pads, meat pads, fruit pads, etc... with the following specifications:
75 - 400 gsm max mechanical speed 65m/min, average running speed 60 m/min (products 75-160 gsm).
Line consisting of:
Bottom Tissue Unwinding System
- Two pneumatic tissue loading bars, max roll diameter 35”/890mm (including the core) mm and max roll width 27.5”/700mm
- Automated tissue splice switch over
- Automated tissue tension bar bracket
Defibration System
- Two hammer mills and two pulp unwind stands, width of pulp sheet 23”/600 mm, roll diameter 19”/483 mm.
- Two volumetric fibre web feeders
Web Forming System
- Two web forming heads
- Two vacuum chamber systems including fan
- Two atomizing humidification systems
- Two blowers with dust collector
Web Transfer System
- Two conveyer belts travel systems
Top Tissue Unwinding Systems
- Two pneumatic tissue loading bars, max roll diameter 35”/890mm (including core) mm and max roll width 27.5”/700mm
- Automated tissue splice switch over
- Automated tissue tension bar bracket
Embossing System
- Heat press electrical oil driving roller
- Compacting embossing press with electrical oil boiler
Rewinding and Splicing Systems
- Six adjustable width splicing blades
- Max roll width is 26”/660mm
- Max roll diameter 42” /1070mm
- Automated roll splicing blade
- Automated winding roll changeover
- Trimming waste collection unit
Electrical System
- Ten A800 Mitsubishi Electric converters
- Ten Melservo-J4 Mitsubishi Electric servers
- Sixteen Danfoss VLT converters
- Ten Sinovo inverters
Dust Collection System, brand new in 2023
Can be offered with a new (2024) Jasch Model No.: JIL 400K GSM gauge sensor as well if of interest.
