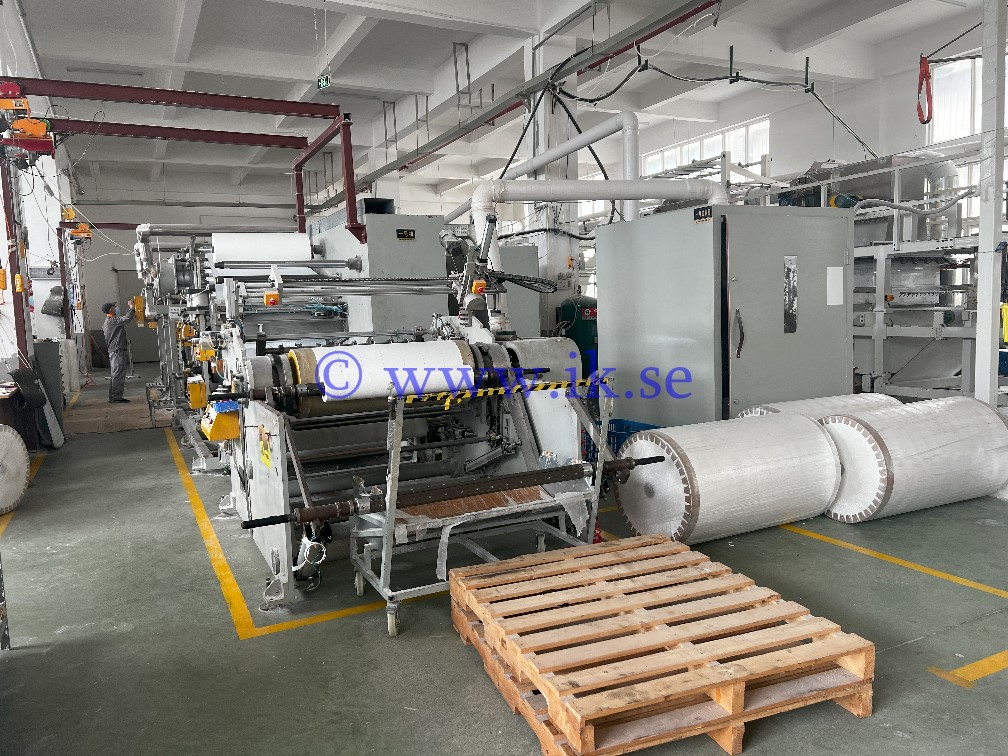

GHC Group short-fiber airlaid line

Fully refurbished (2024) production line for hydrogen bonded airlaid machine with the following specifications:
max mechanical speed 65 m/min, average running speed 60 m/min on products 75-160 gsm.
Can produce from 75 up to 400 gsm.
Line consisting of:
Bottom tissue unwinding system
- 02 pneumatic tissue loading bars, max roll dia 890 mm (35 inch) - including core and max roll width 1066 mm (42 inch).
- automated tissue splice switch over
- automated tissue tension bar bracket
Defibration system
- 02 hammer mills and two pulp unwind stands, max width of pulp sheet 500 mm (19 inch), max roll dia 1200 mm (47 inch)
- 02 volumetric fiber web feeders
Web forming system
- 02 web forming heads
- 02 vacuum chamber systems including fans
- 02 atomizing humidification systems
- 02 two blowers with dust collector
Web transfer system
- 02 conveyor belts
Top tissue unwinding system
- 02 pneumatic tissue loading bars, max roll dia 890 mm (35 inch) - including core and max roll width 1066 mm (42 inch).
- automated tissue splice switch over
- automated tissue tension bar bracket
Embossing system
- heat press calender - electrical oil driving roller
- compacting embossing press with electrical oil boiler
End-of-line
- 01 slitting and winding system with 30 adjustable splicing blades/knives, max roll width 1066 mm (42 inch), max roll dia 1100 mm (43 inch), automated roll splicing blade, automatic winding roll change-over, trim waste collection unit.
Complete electrical system, panels, PLC, consisting of:
- 12 A800 Mitsubishi converters
- 06 Melservo-JE Mitsubishi servers
- 04 Sinovo inverters
