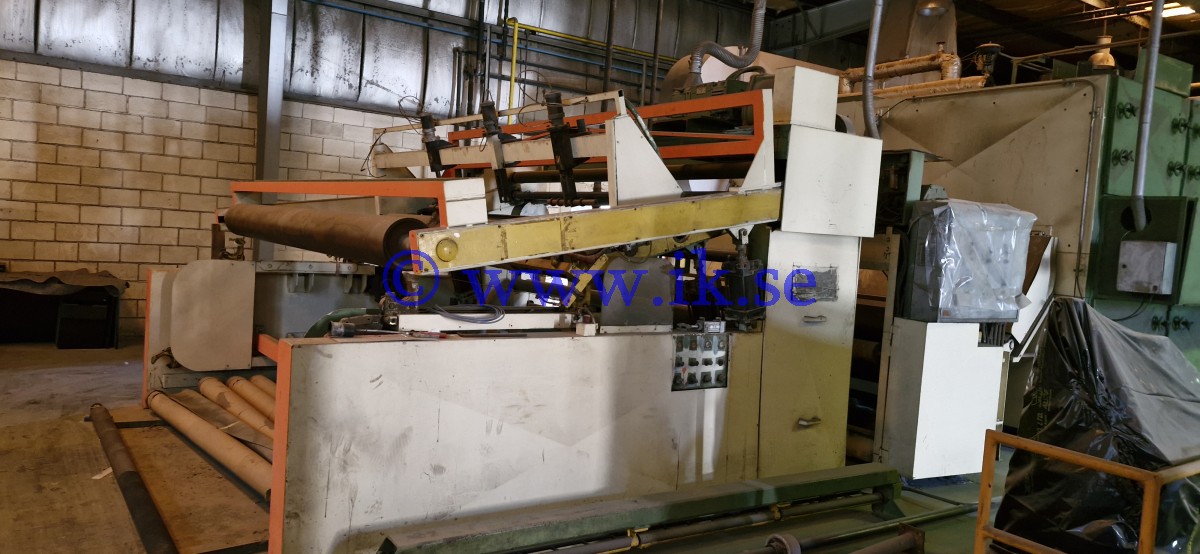

Complete needlepunch and thermobond line needlepunch line

Complete needlepunch line for production of bituminous waterproof membranes for roofing, coating substrates (artificial leather and flooring) filter media and/or geotextiles.
Capacity up to 500 kg/Hr, PET staple fiber and acrylic resin binder, 130 - 300 gsm for bituminous membranes and 80 - 1000 gsm for geotextiles.
Consisting of:
Carresi 3650 balebreaker, serial #2248, ww: 3500 mm
ORV anti-static treatment
pneumatic transport
2*Carresi 3654 storage boxes, ww: 4500 mm, capacity 230 cubic meters
pneumatic transport
Bonino longitudinal loader, to feed longitudinal carding machine
Bonino 200-0093 longitudinal card, ww: 4000 mm, breast - dia 770 mm, main swift - dia 2000 mm, 4 doffers - dia 500 mm
transversal loader, to feed the transversal carding machine
FOR HL3000 transversal card, yoc: 1987, ww: 3000 mm, breast - dia 858 mm, main swift - dia 1500 mm, 2 doffers - dia 858 mm
Automatex FA2000 T, ingoing 3000 mm, outgoing 5000 mm, speed 60 m/min
Asselin DF 1500 rotary pre-needler, ww: 4000 mm, 3700 needles, yoc: 1981
Automatex AG 100-B needle loom, ww: 4000 mm, double board, 5000 needles/lm, speed 1000 rpm, 40,000 needles total
Automatex AF 100-T needle loom, ww: 4000 mm, double board, 5000 needles/lm, speed 1000 rpm, 40,000 needles total
Automatex needle loom, ww: 4000 mm, double board, 5000 needles/lm, speed 1000 rpm, 40,000 needles total
Asselin DF 35-4E needle loom, yoc: 1981, ww: 3500 mm, 5850 needles/lm, speed 800 rpm, 41,000 needles total
Brunati TF3600 thermobonding machine, diathermic oil heating, ww: 3600 mm, max operating temp 260 deg. C.
ORV MB1 RE foaming machine
Fromec LG3600 foulard/padder, ww: 3600 mm, max operating pressure 6 bars
Brunati EC15 oven/dryer, heated by diathermic oil, max operating temp 260 deg. C., ww: 3600 mm
Calender, 2 cylinders, cooled by chilled water, ww: 3500 mm
Fromec winder, ww: 3500 mm
Tecnotex edge-trim recycling machine
ORV resin preparation system
Babcock Wanson Thermopack 1500-B diathermic oil heater, capacity 1500 kcal/hr, max temp 300 deg. C.
Electrical distribution panel, yoc: 1991
Process control panels, yoc: 1991

SKU	691-0057
Manufacturer
Model	Complete needlepunch and thermobond line
Year	1981 - 1991
Electricity
Width	3000 mm
Quantity	1
