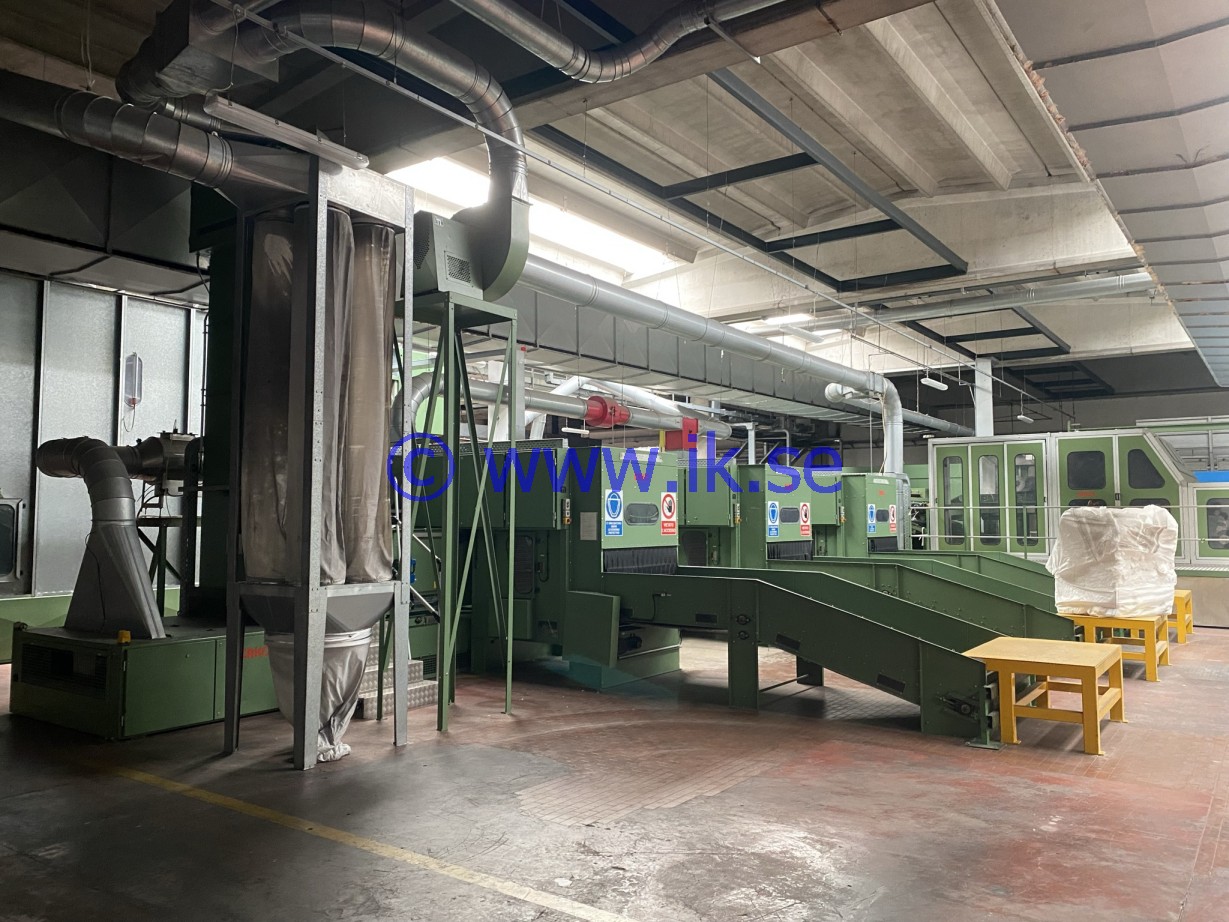

Erko/Autefa/Fehrer needlepunch line

for products of 50 -800 g/m2, consisting of:
03* Erko EBO bale openers, ww: 1500 mm including inlet conveyor, each with continuous belt-weighing system, collecting belt, EFS900 silo for recycled fibers and small EMZL opener with blower/fan.
01*Erko EGRS 1500 mixer
01*Erko EFO-TV fine opener, ww: 1500 mm directly connected to EGRS
01*complete dust and fiber filtration and separation system
01*Erko card, VS/EFS chute feed with fan and suction hood and EDS-W card feeder with belt weighing system, exit in double doffers.
01*Autefa 190 crosslapper, ingoing 2500 mm, outgoing 4500 mm, inlet speed 100 m/min
01*Autefa webdrafter, 5 trios, each trio individually controlled with inlet compression belt
01*Fehrer NL9/S pre-needler, ww: 4400, single board, downstroke, 60 mm, complete with FFS feeding system
01*Fehrer NL21/R needleloom, ww: 4000 mm, double board, upstroke
01*Fehrer NL21 needleloom, ww: 4000 mm, double board, downstroke
01*Fehrer NL9/SRS, ww: 4000 mm, 1 board downstroke and 1 board upstroke (not aligned)
01*Fehrer NL9/SRS, ww: 3600 mm, 1 board downstroke and 1 board upstroke (not aligned)
Needleloom system complete also with insulation chamber.
01*Bombi 3-cylinder smoothing calender in vertical execution, oil heated, complete with secondary circuit heating unit
01* Mathys end-of-line system consisting of: cylinder accumulator, slitter with 3 crush cut knives, winder with two pairs of horizontal driven support rolls.
