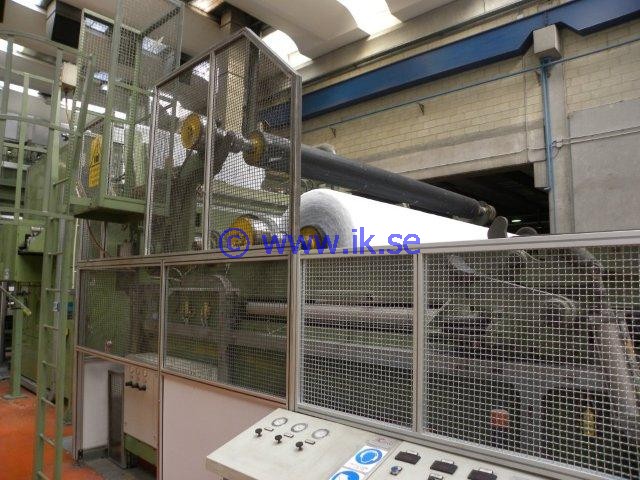

A. Celli winding and slitting line
Winding and slitting/re-winding line for spunbond (10-50gsm) composed of A. Celli models AC3-3200+500+701+ AC810RA
Consisting of:
1 x Pope Winder, Type: AC3/3200, Model: 95046/630
- Product: spunbond 10-50 gsm
- Max roll dia: 3200 mm
- Min roll dia: 800 mm
- Spool dia: 350 mm
- Speed: 300 m/min
- Mechanical speed: 350 m/min
- Threading speed: 10 m/min
1 x Stocking station with 2 Position, 3200 mm dia
1 x Slitter/rewinder, Type: AC 810/RA, Model: 95046/810
- 1 Belt Unwinder, max dia 3200 mm, 350 mm rubberized unwinding shaft
- 1 slitting unit with longitudinal cutting system, Type: Shear Cut, Slitting Width: min 60 mm
- Rewinder, winding shaft 75 mm or 150 mm, max dia:1200 mm, min dia: 300 mm, speed: 600 m/min,
mechanical speed: 650 m/min, threading Speed : 10 m/min
SKU | 659-0021 |
---|---|
Manufacturer | A. Celli |
Model | |
Year | 1995 |
Electricity | 400/3/50 |
Width | 4500 mm |
Quantity | 1 |
