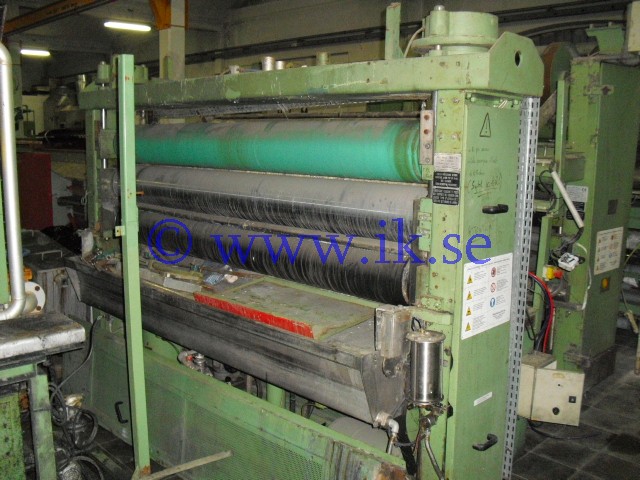

Beta D-FLC-3 padder

Differentiated padder = two machines in one, so each nip can work at any working pressure, independently from the other nip.
Cylinder width 2600 mm - working width maximum 2500 mm
Working pressure = 12 ton max (for each nip)
3 cylinders - dia 270 mm, idle upper roll, central driven roll, lower idle roll
Machine max speed = 70 m/min
Double lifting trough
Entry device with two stainless steel rollers to adjust fabric tension
Synchronization by dancing roller
Front spreader roller in Ebonite (driven by 0.5hp motor)
Rear spreader roller in Stainless steel (fixed)
