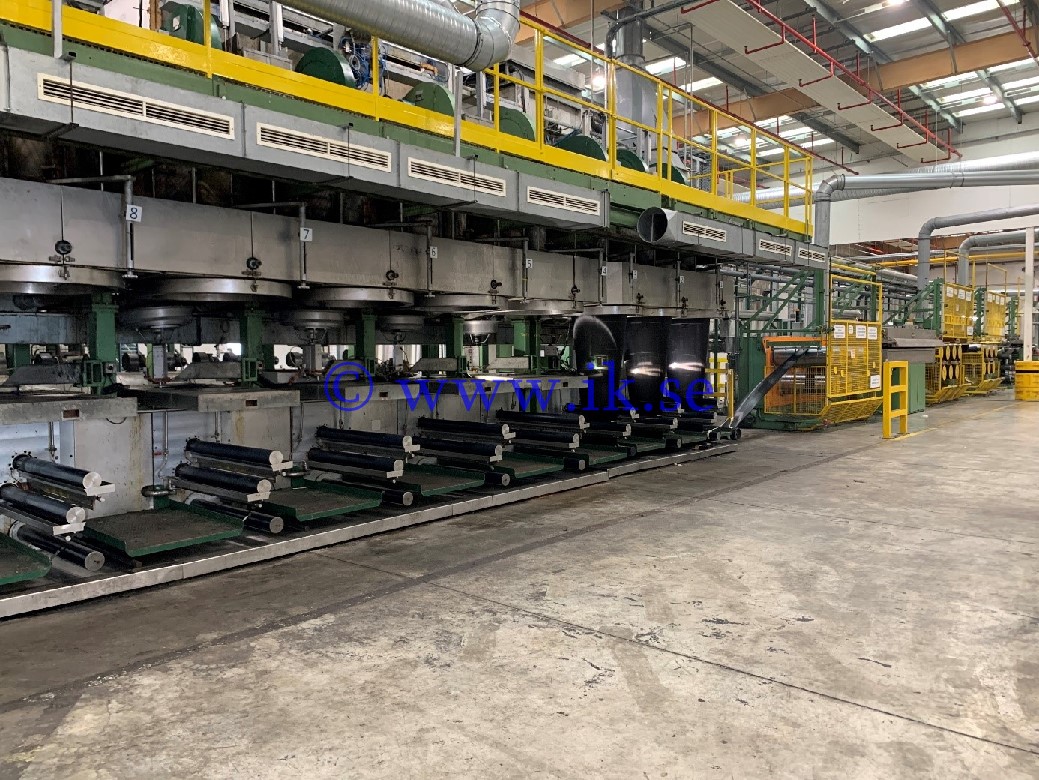

Faré PP extrusion synthetic fiber spinning line

Average capacity 1000 kg/hr for HT fiber, higher output for non-HT fiber.
Specifications obtained for HT, average 50 cN/tex and 100% elongation.
Consisting of:
2*extruders:
- #1 - dia 200 mm with 312 kW DC motor
- #2 - dia 161 mm with 328 kW DC motor.
- Filter surface 2x 160 mm dia and 3 x 160 mm dia.
Spinning system:
- 9 positions, oil heated, PT100 T measuring system, pressure measurement for each position
Spin packs and spinnerets:
- 14 spin packs - dia 860 mm,
- 25 spinnerets with 10*75,000 holes, 8*65,000 holes and 7*45,000 holes
Cranes, loading system and pre-heating oven
Oil boiler - electrically heated
Air Quenching, 1 for 6 positions and 1 for 3 positions
Suction spinning exhaust smoke
Godets and waste collector
- Godet 1 - 7 rolls, dia 400*1000 mm, chromium plated, 60 kW DC motor, thermal oil heated
- Godet 2 - 7 rolls, dia 400*1000 mm, ceramic plated, 125 kW DC motor, thermal oil heated
- Godet 3 - 7 rolls, dia 400*1000 mm, ceramic plated, 250 kW DC motor, thermal oil heated
- Waste collection with 3 aspirators (1 after each godet) and waste container
Steam box and stacking rollers
- 3 stacking rollers, ceramic coated, 1 roll with load control
Annealing oven - thermal oil heating
2 crimping units
- ww: 160 mm, up to 2000000 denier and 2.5 - 8 crimps/cm
- ww: 200 mm, totally new - not yet installed
J-box
Cutting unit:
- cutter reels for 40, 45, 55, 70, 75 and 90 mm in aluminum and steel
Metal detection system
Ventilator
fully PLC controlled
Complete with:
2* Zeppelin polymer silos, yoc: 2020, (outside), each 223 m3, dia - 4050 mm, with level indicators (low/high) via paddle switch + radar sensor for each silo
AZO dosing and mixing system, from 2020 with:
- 2 main dosing systems
- 3 gravimetric additive dosing system, tolerance 0.5-3%
- mixing unit for perfect homogenization
- including vacuum pumps
- separate control panel
Valvan automatic bale press, yoc: 2020
- 40 tons pressing force
- to press for internal use, without packaging
- with PP cord banding
- capacity 1600 kg/hr.
dry transformer, 2000 kvA, yoc: 2020
Daikin cooling system, yoc: 2020
- 220 kW cooling capacity
- free cooling (dry cooler) in-line for energy saving
Pyrox pyrolysis cleaning oven, yoc: 2020
- PLC control and afterburner
- up to 485 deg. C and afterburner up to 850 deg. C.
- can handle cart up to 1*1*1 meter
Alpha ultrasonic cleaning bath, yoc: 2020
- 200 liters, internal dimensions 0.9*0.25*0.9 meters
