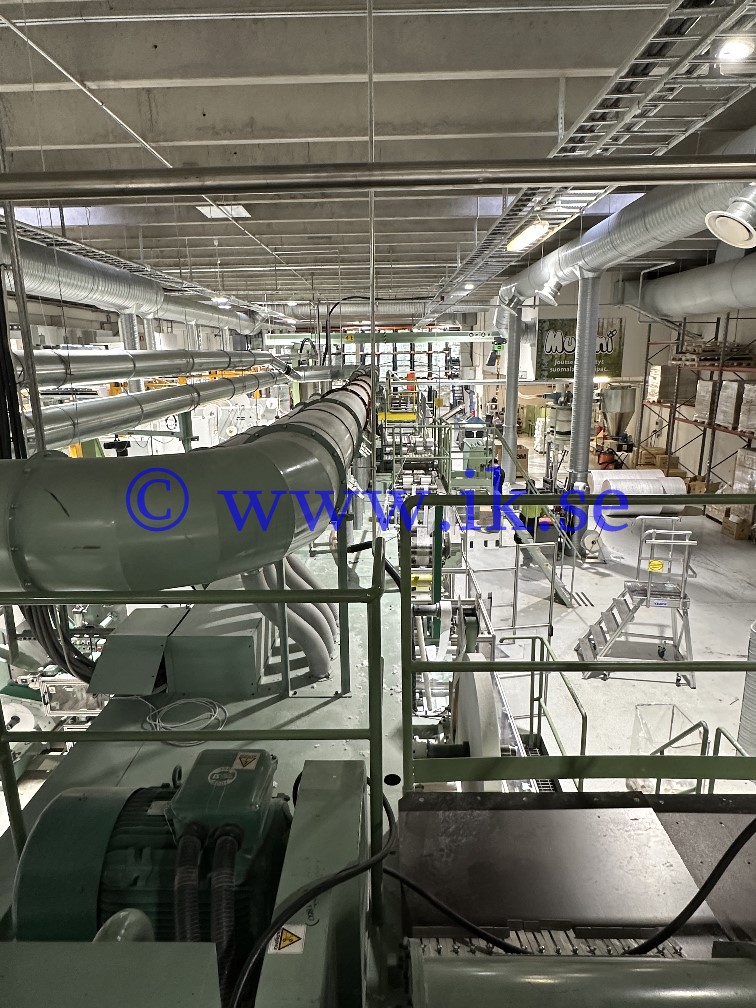

Zuiko DR-440N baby diaper line

Pull-up baby pants diaper line, speed 250 ppm. Sizes L + Big (5 and 6) 350*520 mm and 380*565 mm.
Right-hand machine.
Pulp infeed, 500 mm, dia - 1500 mm, 76 mm core
Forming section with hammermill and single drum former designed for flat and straight profile cores.
Accrison volumetric SAP application system - added in 2013.
Inner end/side press unit for absorbent pad, inner cutter unit for absorbent pad. 90 degree turning drum for pad.
Osprey filter with two stages - model 6-4 drumfilter and model 6-5 final filtration.
Material unwinds with BST web-guides, autosplicing and tension control for the following materials: carrier tissue, acquisition layer, center nonwoven, poly barrier film, side nonwoven, inner nonwoven, outer nonwoven.
Standing leg cuff applicator with 4 stands on each side, with side NW slitter, folding guide, SLC side heat seal.
Acquisition layer cut & place unit.
Sandvik die cutting units (2013), positive pending Tungsten carbide rotary cutters, two sizes.
Elastic hanger/feeder (waist 14 strands, body fit 24 strands, and curved elastic 6 strands. Intermittent waist and curved leg elastic cutting unit (2013).
Disposable tape application unit (2013)
Bi-folding unit, 2nd debulking belt, 90 degree twist conveyor, 3rd debulking belt, curved leg elastic application unit, final heat seal cutting unit, 90 degree turning drum under the heat seal cutter.
7 Nordson MX-series hotmelt tanks with 14 applicators (carrier tissue, acquisition layer, center NW, poly barrier film, end waterproof, cuff attachment, cuff end, cuff elastic, cuff holding, core to chassis, outer NW, waist folding, waist elastic, body fit elastic).
Main motor HC 55 kW, center operation panel, main control panel.
Optima OS-4 stacker, Optima LS-4 bagger with two exits and Optima SEM 150/40 bundler.
Mitsubishi PLC for the main line and Allen Bradley PLC for stacker and baggers.
